Specification
◆ Material:100% High tenacity industial polyester yarn
◆ Color:Violet
◆ Working Load:1000 kg
◆ Ply: Double
◆ With reinforced lifting eyes
◆ Length Available:1m to 12m
◆ Low elongation
◆ According to EN1492-1+A1:2008
Specification
◆ Material:100% High tenacity industial polyester yarn
◆ Color:Violet
◆ Working Load:1000 kg
◆ Ply: Double
◆ With reinforced lifting eyes
◆ Length Available:1m to 12m
◆ Low elongation
◆ According to EN1492-1+A1:2008

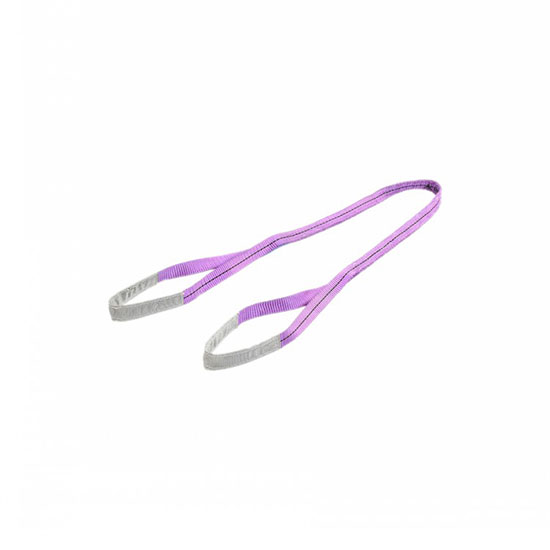

1T Webbing Sling/Polyester Flat Webbing Sling
Flat webbing sling
1T Webbing Sling are made from high tenacity 100% polyester (PES) webbing material manufactured according to EN standards. These slings have the following advantages:
• Low weight, therefore offering easy handling
• Protection against hand injuries
• Protection against cargo surface damage
• Highly flexible and adaptable to given shapes
• UV-resistant, eliminating material ageing or brittlement
• Heat resistant up to 100°C
• Water – resistant fabric, preventing frost damage (down to -40°C)
• Colour coded as per latest EN standard
• Soft sewn eyes (Flat, Becket or Reverse eyes)
• Low elongation
Flat slings are manufactured to EN 1492-1 safety factor of 7:1(Webbing width in mm)
Safety Factor: 4:1,5:1,6:1 Width:30mm
Safety Factor:7:1 Width:30mm
| Colour | SWL/WLL | Width | SWL/WLL IN KG at different modes | ||||
| Straight lift 100% | Basket lift 200% |
140% 7°-45° |
Choker lift 80% |
100% 45°-60° |
|||
| VIOLET | 1T | 30mm | 1000 | 2000 | 1400 | 800 | 1000 |
| GREEN | 2T | 60mm | 2000 | 4000 | 2800 | 1600 | 2000 |
| YELLOW | 3T | 90mm | 3000 | 6000 | 4200 | 2400 | 3000 |
| GREY | 4T | 120mm | 4000 | 8000 | 5600 | 3200 | 4000 |
| RED | 5T | 150mm | 5000 | 10000 | 7000 | 4000 | 5000 |
| BROWN | 6T | 180mm | 6000 | 12000 | 8400 | 4800 | 6000 |
| BLUE | 8T | 240mm | 7000 | 16000 | 11200 | 6400 | 8000 |
| ORANGE | 10T | 300mm | 10000 | 20000 | 14000 | 8000 | 10000 |
| Colour | SWL/WLL | Width | SWL/WLL IN KG at different modes | ||||
| Straight lift 100% | Basket lift 200% |
140% 7°-45° |
Choker lift 80% |
100% 45°-60° |
|||
| VIOLET | 1T | 1″/25mm | 1000 | 2000 | 1400 | 800 | 1000 |
| GREEN | 2T | 2″/50mm | 2000 | 4000 | 2800 | 1600 | 2000 |
| YELLOW | 3T | 3″/75mm | 3000 | 6000 | 4200 | 2400 | 3000 |
| GREY | 4T | 4″/100mm | 4000 | 8000 | 5600 | 3200 | 4000 |
| RED | 5T | 5″/125mm | 5000 | 10000 | 7000 | 4000 | 5000 |
| BROWN | 6T | 6″/150mm | 6000 | 12000 | 8400 | 4800 | 6000 |
| BLUE | 8T | 8″/200mm | 7000 | 16000 | 11200 | 6400 | 8000 |
| ORANGE | 10T | 10″/250m | 10000 | 20000 | 14000 | 8000 | 10000 |
| ORANGE | 12T | 12″/300mm | 10000 | 24000 | 16800 | 9600 | 12000 |
Kailipu Professional for Rigging and Lifting Items
For any more help, e-mail our specialists at klp@qd-kailipu.com for assistance.
