Bracket Height 140mm, Plate Thickness 9mm
Bracket Height 110mm, Plate Thickness 9mm
Material: Carbon Steel
Color: Black painted
Packing: Carton +Pallets
Bracket Height 140mm, Plate Thickness 9mm
Bracket Height 110mm, Plate Thickness 9mm
Material: Carbon Steel
Color: Black painted
Packing: Carton +Pallets

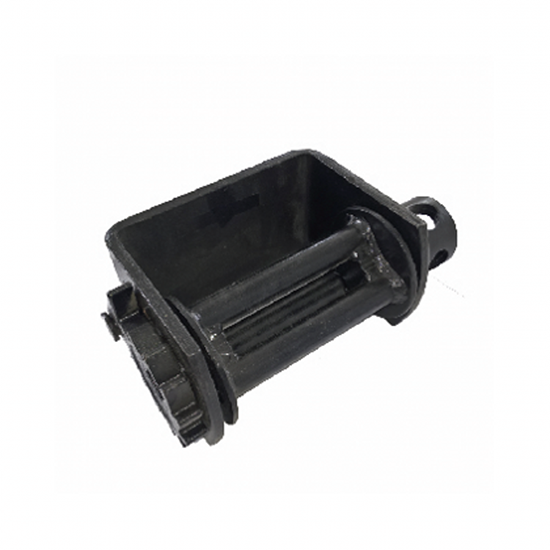

Low Profile Side Mount Weld-On Winch

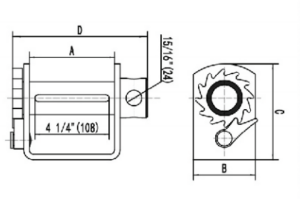

| Description | A | B | C | D | Net Weight | |||||
| mm | in. | mm | in. | mm | in. | mm | in. | KG | LBS | |
|
Three Bars, Bracket Height 140mm, Plate Thickness 9mm |
162 | 6.32 | 90 | 3.51 | 140 | 5.46 | 248 | 9.67 | 5.67 | 12.47 |
|
Three Bars, Bracket Height 110mm, Plate Thickness 9mm |
162 | 6.32 | 100 | 3.9 | 110 | 4.29 | 248 | 9.67 | 5.6 | 12.31 |
Kailipu-China supplier manufacturer of Weld-On Winch
Truck Tie Down Winch The Low Profile Weld On Winch is also known as a “side Mount” winch. We usually weld them to the side of flatbed trailers.
This low profile weld-on winch is designed to be permanently mounted in a fixed position. And the low profile winch is for side mount applications. With black powder coated to protect against abrasion and rust. So it features a low profile design for easy applications.
Kailipu – China Manufacturer, Supplier, Factory of trailer winches
Various Types of Trailer Winches & How Does Winch Works
Winches are synonymous with cargo control in the flatbed trucking industry. No matter what kind of open-deck trailer is being used, a truck driver relies on strategically located winches to tie down the cargo using webbing straps. A trailer needs enough types of trailer winches to meet federal tie-down standards dictating the required number of straps for each load.
Standard Welded Winch
The industry standard is the tried-and-true welded winch. And it comes in a variety of sizes and is remarkably simple in its construction. It consists of the main body along with the winch axle, ratchet, and gear. There is a hole in the axle just outside the main body designed to accept a standard winch bar.
This particular winch gets its name from the mounting method. In other words, it is welded directly to the rail of the trailer. It can be mounted horizontally on the outer edge of the rail or vertically on the underside. The obvious benefit here is strength. On the downside, welded winches are fairly permanent.
