Technical Notes：Conform To NACM2010
Material：The highest quality alloy steel
Processing： Welded
Surface Finish：Electrophoresis
Ultimate load is 4 times at working load limit
Application: Overhead Lifting
Packing: Drum + Steel pallets
Technical Notes：Conform To NACM2010
Material：The highest quality alloy steel
Processing： Welded
Surface Finish：Electrophoresis
Ultimate load is 4 times at working load limit
Application: Overhead Lifting
Packing: Drum + Steel pallets

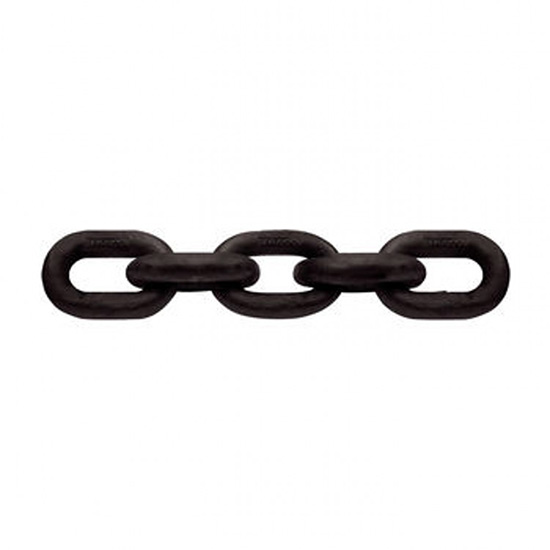

NACM2010 GRADE 80 ALLOY CHAIN

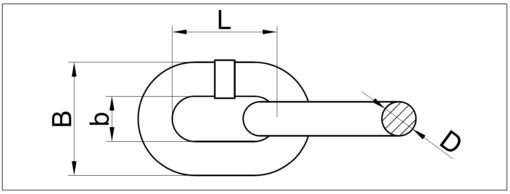

| Nominal Chain Size | Material Diameter | Working Load Limit(Max.) | Proof Test (Min.) | Min. Breaking Force | Inside Length (Max.) | Inside Width Range | |||||||
| in | mm | in | mm | lbs | kg | lbs | kN | lbs | kN | in | mm | in | mm |
| 7/32 | 5.5 | 0.217 | 5.5 | 2,100 | 970 | 4,200 | 19 | 8,400 | 38 | 0.69 | 17.6 | 0.281-0.325 | 7.14-8.25 |
| 9/32 | 7 | 0.276 | 7 | 3,500 | 1,570 | 7,000 | 30.8 | 14,000 | 61.6 | 0.9 | 22.9 | 0.375-0.430 | 9.53-10.92 |
| 5/16 | 8 | 0.315 | 8 | 4,500 | 2,000 | 9,000 | 40.3 | 18,000 | 80.6 | 1.04 | 26.4 | 0.430-0.500 | 10.92-12.70 |
| 3/8 | 10 | 0.394 | 10 | 7,100 | 3,200 | 14,200 | 63 | 28,400 | 126 | 1.26 | 32 | 0.512-0.600 | 13.00-15.20 |
| 1/2 | 13 | 0.512 | 13 | 12,000 | 5,400 | 24,000 | 107 | 48,000 | 214 | 1.64 | 41.6 | 0.688-0.768 | 17.48-19.50 |
| 5/8 | 16 | 0.63 | 16 | 18,100 | 8,200 | 36,200 | 161 | 72,400 | 322 | 2.02 | 51.2 | 0.812-0.945 | 20.63-24.00 |
| 3/4 | 20 | 0.787 | 20 | 28,300 | 12,800 | 56,600 | 252 | 113,200 | 504 | 2.52 | 64 | 0.984-1.180 | 25.00-30.00 |
| 7/8 | 22 | 0.866 | 22 | 34,200 | 15,500 | 68,400 | 305 | 136,800 | 610 | 2.77 | 70.4 | 1.080-1.300 | 27.50-33.00 |
| 1 | 26 | 1.02 | 26 | 47,700 | 21,600 | 95,400 | 425 | 190,800 | 850 | 3.28 | 83.2 | 1.280-1.540 | 32.50-39.00 |
| 36895 | 32 | 1.26 | 32 | 72,300 | 32,800 | 144,600 | 644 | 289,200 | 1288 | 4.03 | 102.4 | 1.580-1.890 | 40.00-48.00 |
NACM2010 GRADE 80 ALLOY CHAIN
Specifically recommended for overhead lifting
Meet the latest guidelines of the National Association of Chain Manufacturers (NACM)
Produced from the highest quality alloy steel
Quenched and tempered, proof tested
In accordance with 4-to-1 design factor required by NACM specifications
Black electrophoresis finish
WARNING: DO NOT EXCEED THE WORKING LOAD LIMITS !
