Material: Body-Super Carbon Steel. Screw Pin-Alloy Steel
Safety Factor: 4:1, 6:1.
Processing: Drop Forged, quenched and tempered with alloy pins.
Finish: Body-Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size: From 3/16”to 2-1/2”
WLL ,Size embossed on each shackle.
Packing: Cartons or Gunny Bags and then on Pallets.
Material: Body-Super Carbon Steel. Screw Pin-Alloy Steel
Safety Factor: 4:1, 6:1.
Processing: Drop Forged, quenched and tempered with alloy pins.
Finish: Body-Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size: From 3/16”to 2-1/2”
WLL ,Size embossed on each shackle.
Packing: Cartons or Gunny Bags and then on Pallets.

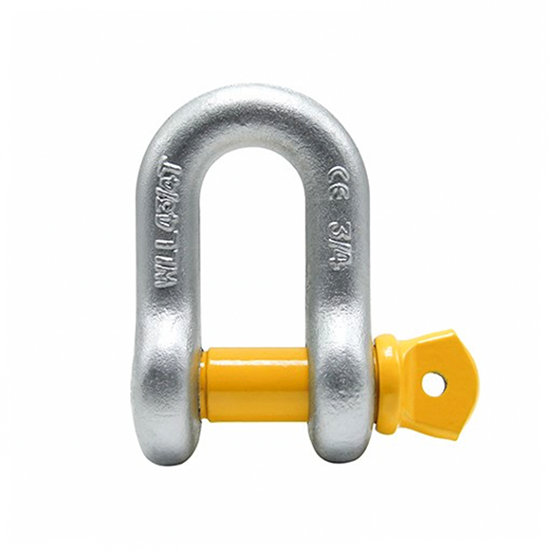

G210 Shackle US Type Screw Pin Chain D Shackles
G210 shackle also known as US type screw pin chain shackle or D shackle, is a type of fastener commonly used in lifting and rigging applications. It is designed to connect and secure two components together, typically chains, ropes, or cables.

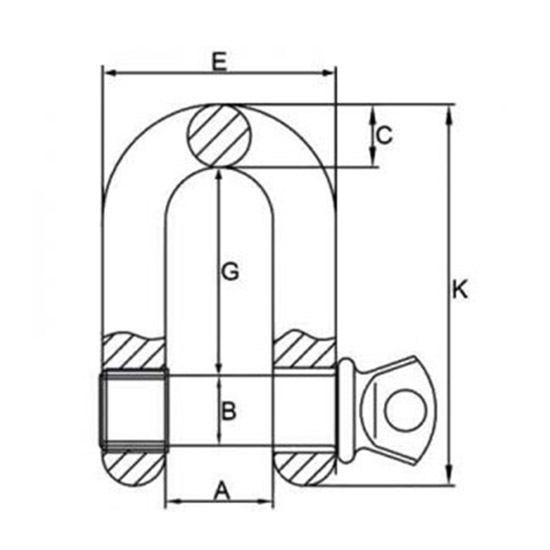

DIMENSIONS OF G210 SHACKLE:
| Nominal | workin | Weight | Dimensions (in.) | Tolerance+/- | ||||||
| size | load | |||||||||
| (in.) | Limit | |||||||||
| (t)* | A | B | C | E. | G | K | G | A | ||
| 1/4″ | 1/2 | 0.11 | 0.47 | 0.31 | 0.25 | 0.97 | 0.97 | 1.59 | 0.06 | 0.06 |
| 5/16″ | 3/4 | 0.17 | 0.53 | 0.38 | 0.31 | 1.15 | 1.07 | 1.91 | 0.06 | 0.06 |
| 3/8″ | 1 | 0.28 | 0.66 | 0.44 | 0.38 | 1.42 | 1.28 | 2.31 | 0.13 | 0.06 |
| 7/16″ | 1.1/2 | 0.43 | 0.75 | 0.5 | 0.44 | 1.63 | 1.48 | 2.67 | 0.13 | 0.06 |
| 1/2″ | 2 | 0.59 | 0.81 | 0.63 | 0.5 | 1.81 | 1.66 | 3.03 | 0.13 | 0.06 |
| 5/8″ | 3.1/4 | 1.25 | 1.06 | 0.75 | 0.63 | 2.32 | 2.04 | 3.76 | 0.13 | 0.06 |
| 3/4″ | 4.3/4 | 2.63 | 1.25 | 0.88 | 0.81 | 2.75 | 2.4 | 4.53 | 0.25 | 0.06 |
| 7/8″ | 6.1/2 | 3.16 | 1.44 | 1 | 0.97 | 3.2 | 2.86 | 5.33 | 0.25 | 0.06 |
| 1″ | 8.1/2 | 4.75 | 1.69 | 1.13 | 1 | 3.69 | 3.24 | 5.94 | 0.25 | 0.06 |
| 1.1/2″ | 9.1/2 | 6.75 | 1.81 | 1.25 | 1.25 | 4.07 | 3.61 | 6.78 | 0.25 | 0.06 |
| 1.1/4″ | 12 | 9.06 | 2.03 | 1.38 | 1.38 | 4.53 | 3.97 | 7.5 | 0.25 | 0.13 |
| 1.3/8″ | 13.1/2 | 11.63 | 2.25 | 1.5 | 1.5 | 5.01 | 4.43 | 8.28 | 0.25 | 0.13 |
| 1.1/2″ | 17 | 15.95 | 2.38 | 1.63 | 1.62 | 5.38 | 4.84 | 9.05 | 0.25 | 0.13 |
| 1.3/4″ | 25 | 26.75 | 2.88 | 2 | 2.12 | 6.38 | 5.78 | 10.97 | 0.25 | 0.13 |
| 2” | 35 | 42.31 | 3.25 | 2.25 | 2.25 | 7.25 | 6.77 | 12.74 | 0.25 | 0.13 |
| 2 1/2” | 55 | 71.75 | 4.12 | 2.75 | 2.75 | 9.38 | 8.07 | 14.85 | 0.25 | 0.13 |
NOTE:
It is important to use chain shackles properly and follow the manufacturer’s guidelines and industry standards to ensure safe and efficient operation. Regular inspection and maintenance are also essential to identify any signs of wear or damage that may affect the shackle’s integrity.
d shackle supplier china kailipu

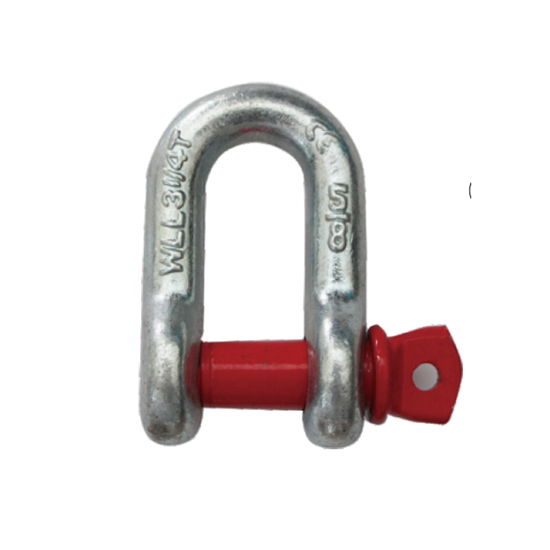

PRODUCT DESCRIPTION
US Fed. Spec. Screw Pin chain shackles G-210 are intended for use in straight line pulls or lifts only.
Chain shackles are also excellent for use with single leg web lifting slings.
Paired with chain, they provide a connecting link to connect to other hardware.
A secure screw pin mechanism makes connections fast and easy.
US Fed. Spec. Screw Pin chain shackles G-210 can be use in many applications such as industrial, agricultural and marine applications.
THE MAIN ADVANTAGE OF G210 SHACKLE
The main advantage of g210 shackle is its versatility and ability to handle heavy loads. It can be used in various industries, including construction, maritime, and transportation, for lifting and securing heavy objects or equipment. Lifting D shackles are available in different sizes and weight capacities to accommodate various applications.
Professional Shackle Supplier in China

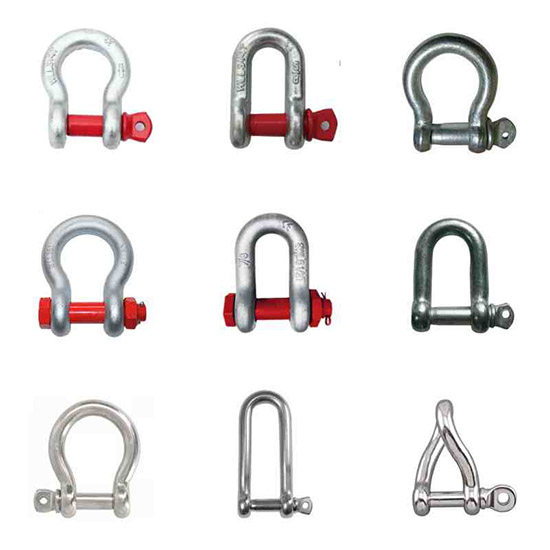

Kailipu is one of the most professional shackle supplier in China, we supplies hundreds of high tensile lifting and towing shackles. Among them, the G209, G210, G2130, G2150, European Large D, BK shackles are the most representative. Meanwhile, our specifications range from 0.33 tons to 500 tons, which covers almost all sizes you will need. If you are looking for a professional shackle supplier, do not hesitate to contact us at sales@qd-kailipu.com.
