Material: Body-Super Carbon Steel. Screw Pin-Alloy Steel
Safety Factor: 4:1, 6:1.
Processing: Drop Forged, quenched and tempered with alloy pins.
Finish: Body-Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size: From 3/16”to 4”
WLL ,Size embossed on each shackle.
Packing: Cartons or Gunny Bags and then on Pallets.
Material: Body-Super Carbon Steel. Screw Pin-Alloy Steel
Safety Factor: 4:1, 6:1.
Processing: Drop Forged, quenched and tempered with alloy pins.
Finish: Body-Hot Dipped Galvanized / Powder Coated / Zinc Plated
Size: From 3/16”to 4”
WLL ,Size embossed on each shackle.
Packing: Cartons or Gunny Bags and then on Pallets.

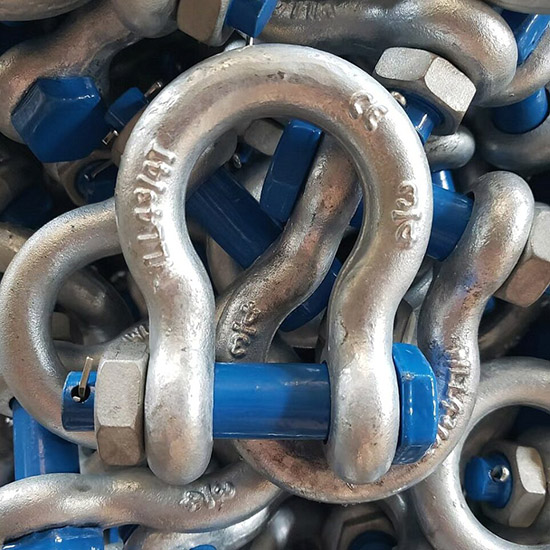

G2130 SHACKLE US BOLT TYPE ANCHOR BOW
G2130 shackle, also known as a high-capacity shackle or a heavy-duty anchor shackle. It is a type of shackle specifically designed to handle exceptionally heavy loads. These shackles are built to withstand higher weight capacities and provide increased strength and durability compared to standard shackles.

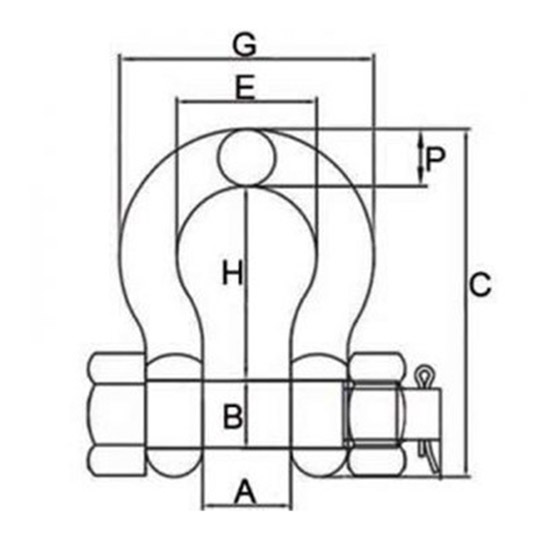

DIMENSIONS G2130 SHACKLE
| Specifications | |||||||||||
| Size | Working | Weight | Dimensions (in.) | Tolerance +/- | |||||||
| Load | |||||||||||
| Limited | |||||||||||
| (in) | (t) | (lbs) | A | B | H | E | C | G | P | C | A |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 1.47 | 0.98 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.11 | 0.47 | 0.31 | 1.13 | 0.78 | 1.84 | 1.28 | 0.25 | 0.06 | 0.06 |
| 3/8 | 1 | 0.33 | 0.66 | 0.44 | 1.44 | 1.03 | 2.49 | 1.78 | 0.38 | 0.13 | 0.06 |
| 1/2 | 2 | 0.79 | 0.81 | 0.64 | 1.88 | 1.31 | 3.28 | 2.31 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.68 | 1.06 | 0.77 | 2.38 | 1.69 | 4.19 | 2.94 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.72 | 1.25 | 0.89 | 2.81 | 2 | 4.97 | 3.5 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.95 | 1.44 | 1.02 | 3.31 | 2.28 | 5.83 | 4.03 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.66 | 1.69 | 1.15 | 3.75 | 2.69 | 6.56 | 4.69 | 1.06 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 15.83 | 2.25 | 1.53 | 5.25 | 3.63 | 9.16 | 6.38 | 1.5 | 0.25 | 0.13 |
NOTE:
When using the g2130 shackle, it’s important to ensure that it is properly rated for the intended load and that it is securely closed and tightened. Proper inspection and maintenance of shackles are crucial to ensure their safe and effective use.
PRODUCT DESCRIPTION

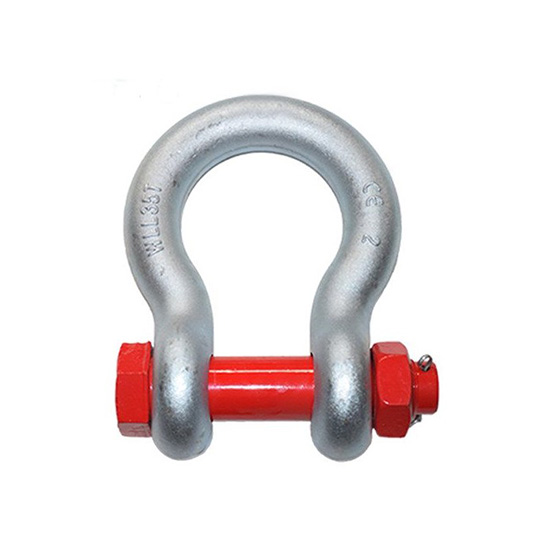

US Fed. Spec. Safety Bolt Anchor Shackles G-2130 is a tough and durable accessory for nylon slings, as well as polyester slings.
Paired with a lifting sling, they help protect the eyes of your sling from wear and tear on clevis hooks.
Anchor Shackles are also more cost effective than a stainless steel bolt type anchor shackle.
These can be use in many applications such as industrial, agricultural and marine applications.
g2130 shackle China supplier
SOME COMMON TYPES OF SHACKLES USED FOR LIFTING
Screw Pin Shackles: These shackles have a threaded pin that can be easily unscrewed to open the shackle and attach it to the lifting equipment. The pin is then screwed back in to secure the connection.
Bolt-Type Shackles: Bolt-type shackles have a removable bolt that passes through the ears of the shackle to secure the connection. These shackles are known for their high strength and are often used for heavy lifting applications.
Safety Pin Shackles: Safety pin shackles have a pin that is secured with a safety cotter pin or a similar locking mechanism. This ensures that the pin remains in place during lifting operations, reducing the risk of accidental disconnection.
Bow Shackles: Bow shackles have a “U” shaped design with a larger loop or “bow” shape, providing more clearance for attaching lifting equipment. They are commonly used when the lifting angle is at an angle or when more space is required to attach the equipment.
D Shackles: D shackles have a “D” shaped design and are named so because they resemble the letter “D.” They have a narrower loop compared to bow shackles and are often used in situations where a compact connection point is required.

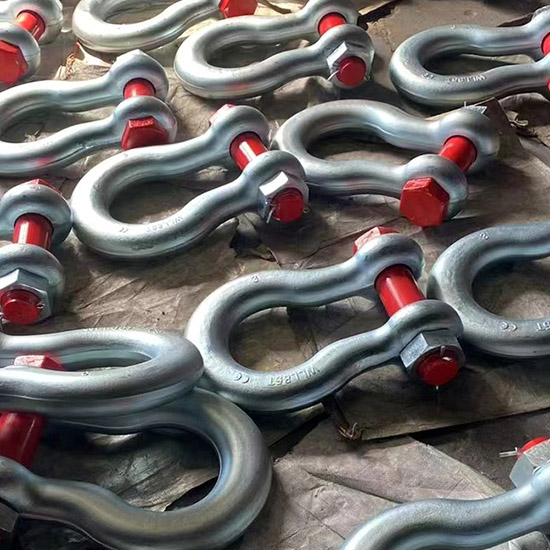

heavy duty shackle China Supplier
Professional Shackle Supplier in China
Kailipu is one of the most professional shackle supplier in China, we supplies hundreds of high tensile lifting and towing shackles. Among them, the G209, G210, G2130, G2150, European Large D, BK shackles are the most representative. Meanwhile, our specifications range from 0.33 tons to 500 tons, which covers almost all sizes you will need. If you are looking for a professional shackle supplier, do not hesitate to contact us at sales@qd-kailipu.com.
